Focal FDP Sport V2 Compact 4-channel motorcycle/ATV amplifier — 150 watts RMS x 4
Powerful performance on dirt or the road

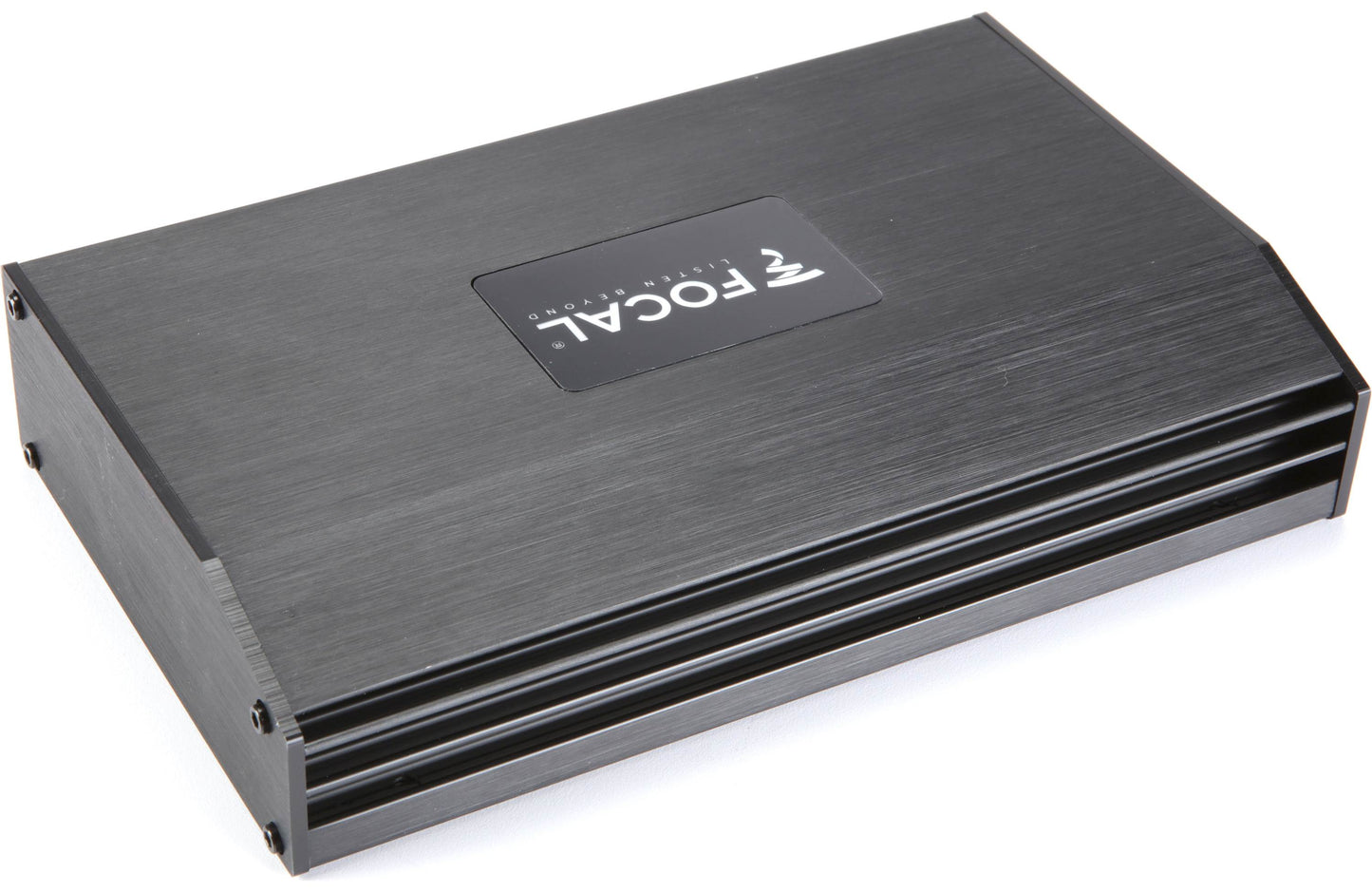

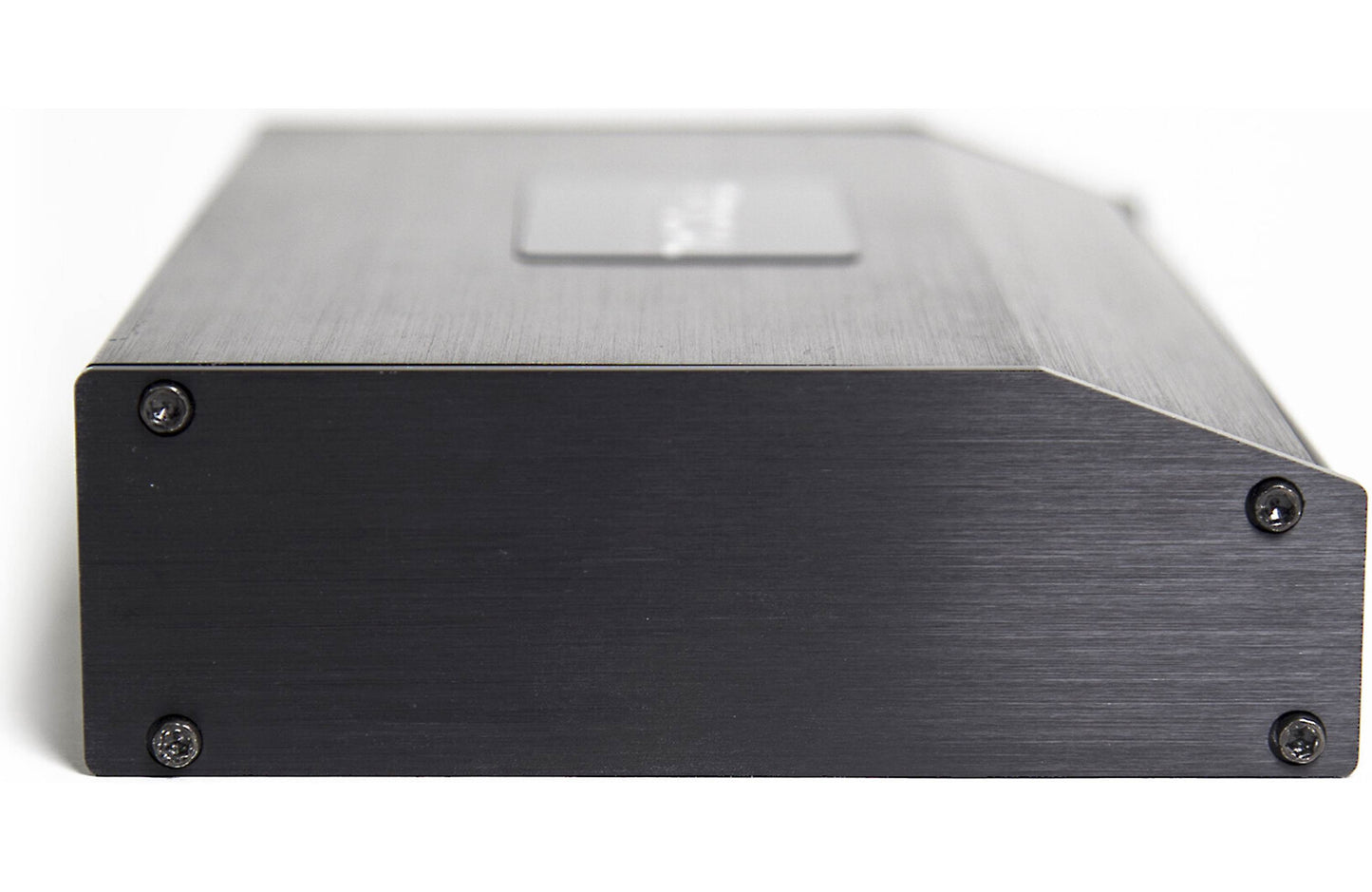

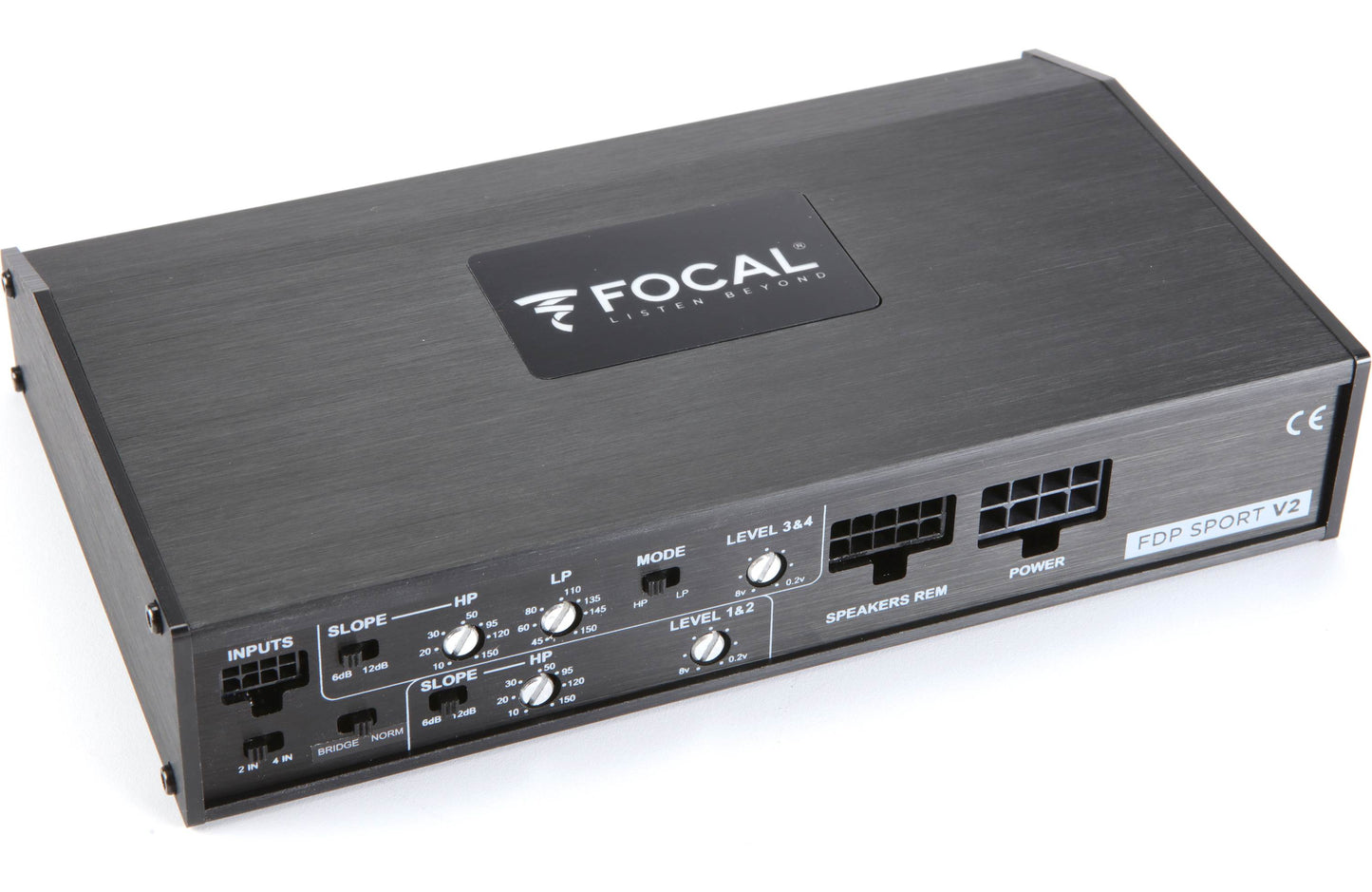

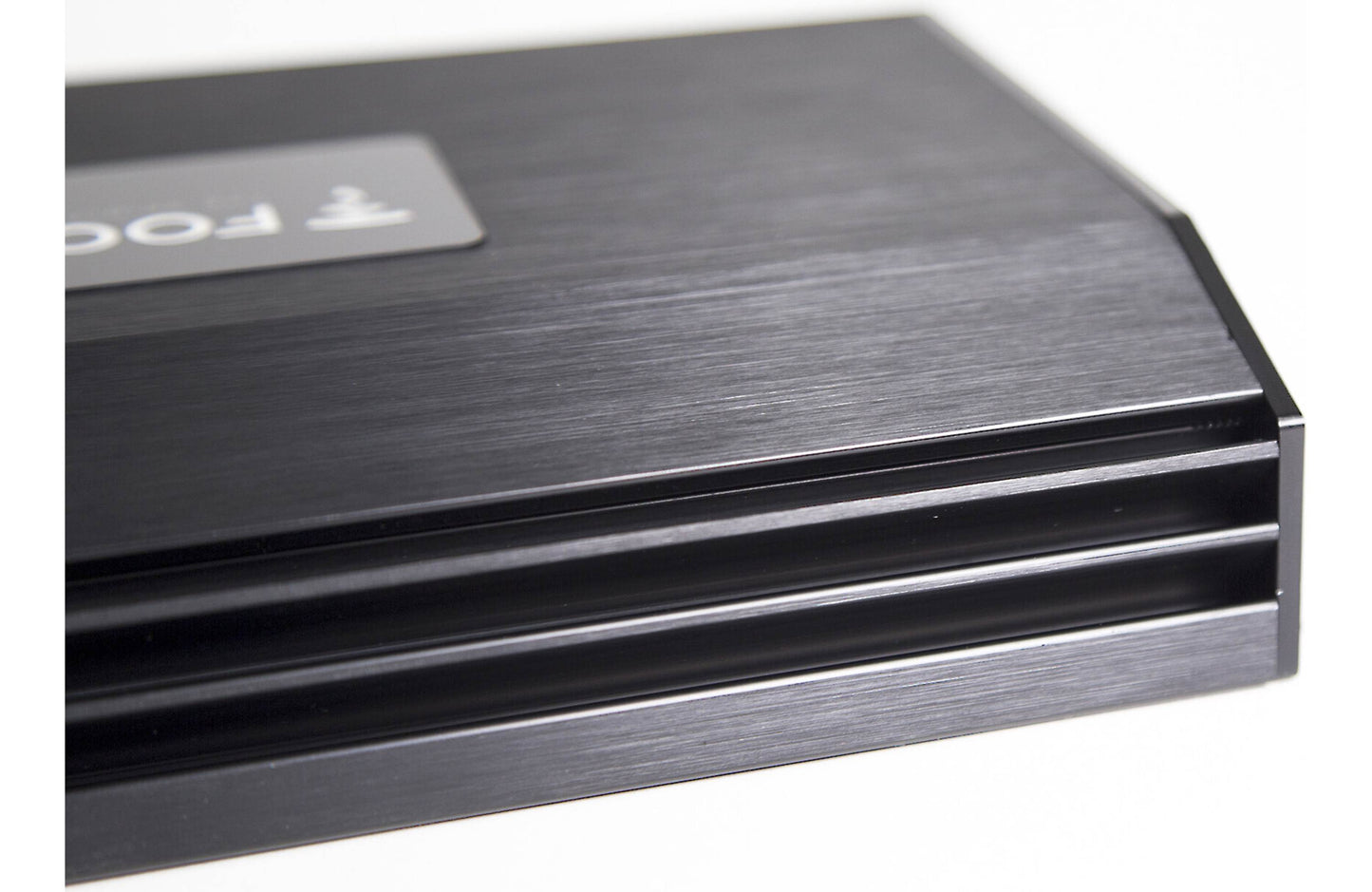

Focal's compact, rugged FDP Sport V2 amplifier brings awesome sound performance to your motorcycle or off-road vehicle. This 4-channel Class D powerhouse is made for life in the outdoors, with a weather-resistant conformal-coated circuit board, a scratch-resistant anodized shell, and thermal overload protection that keeps it from overheating even when it's pushed hard.
Versatile amp
This amazingly small amplifier produces 150 watts RMS per channel in 4-channel mode, which is plenty enough to mask engine and road noise with your good-sounding music. You can also use the amp to power a pair of speakers plus a subwoofer — with up to 400 watts RMS available for the sub out of bridged channels. Crossover filters, tunable for each system configuration, along with an anti-hard clipping circuit, protect your speakers against potentially damaging distortion.
Comes with the connectors you need
The package includes Molex input and output harnesses for Harley-Davidson installations, plus power and ground cables that're long enough to reach the battery in almost any bike or ATV installation. A 4-channel RCA input harness is included to accommodate other custom installs. Adjustable mounting feet give you multiple mounting options for different vehicles.
Product highlights:
- compact all-weather 4-channel amplifier
- 150 watts RMS x 4 at 4 ohm
- 200 watts RMS x 4 at 2 ohm
- 400 watts RMS x 2 bridged at 4 ohms
- CEA-2006 compliant
- designed and engineered in California, USA
- full-range Class D amp technology
- frequency response 10-30K Hz; signal-to-noise ratio: 95 dB
- Ch 1&2: variable high-pass filter (10-150 Hz, 6 or 12 dB/octave)
- Ch 3&4: variable high-pass, low-pass, and bandpass filters
- high-pass: 10-150 Hz, 6 or 12 dB/octave; low-pass: 45-150 Hz, 12 dB/octave
Other Info:
- conformal-coated circuit boards
- dual-rail power supply prevents overheating
- adjustable mounting feet give you 2 mounting options
- preamp and speaker-level inputs (0.3-16V)
- input/output harnesses for Harley-Davidson Molex plugs included
- RCA input harness included
- 5-foot power and ground cables included for motorcycle mounting
- 8-gauge power and ground wires recommended
- fuse rating: 25A x 2
- dimensions: 8-3/8"W x 1-5/8"H x 5-7/8"D

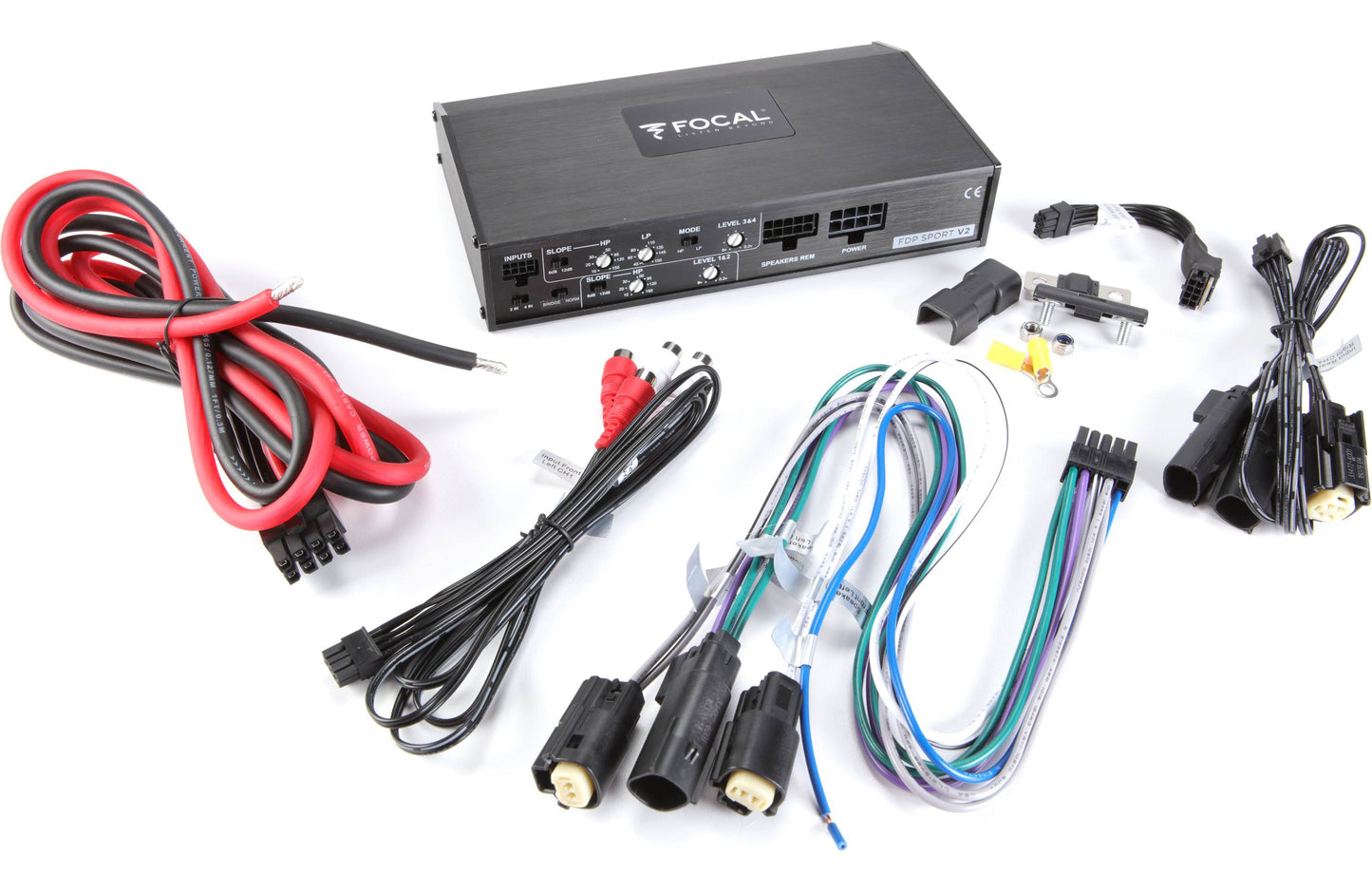

What's in the box:
Focal FDP Sport V2 owner's manual
- 4-Channel amplifier
- Two 25A ATO fuses (installed inside the chassis)

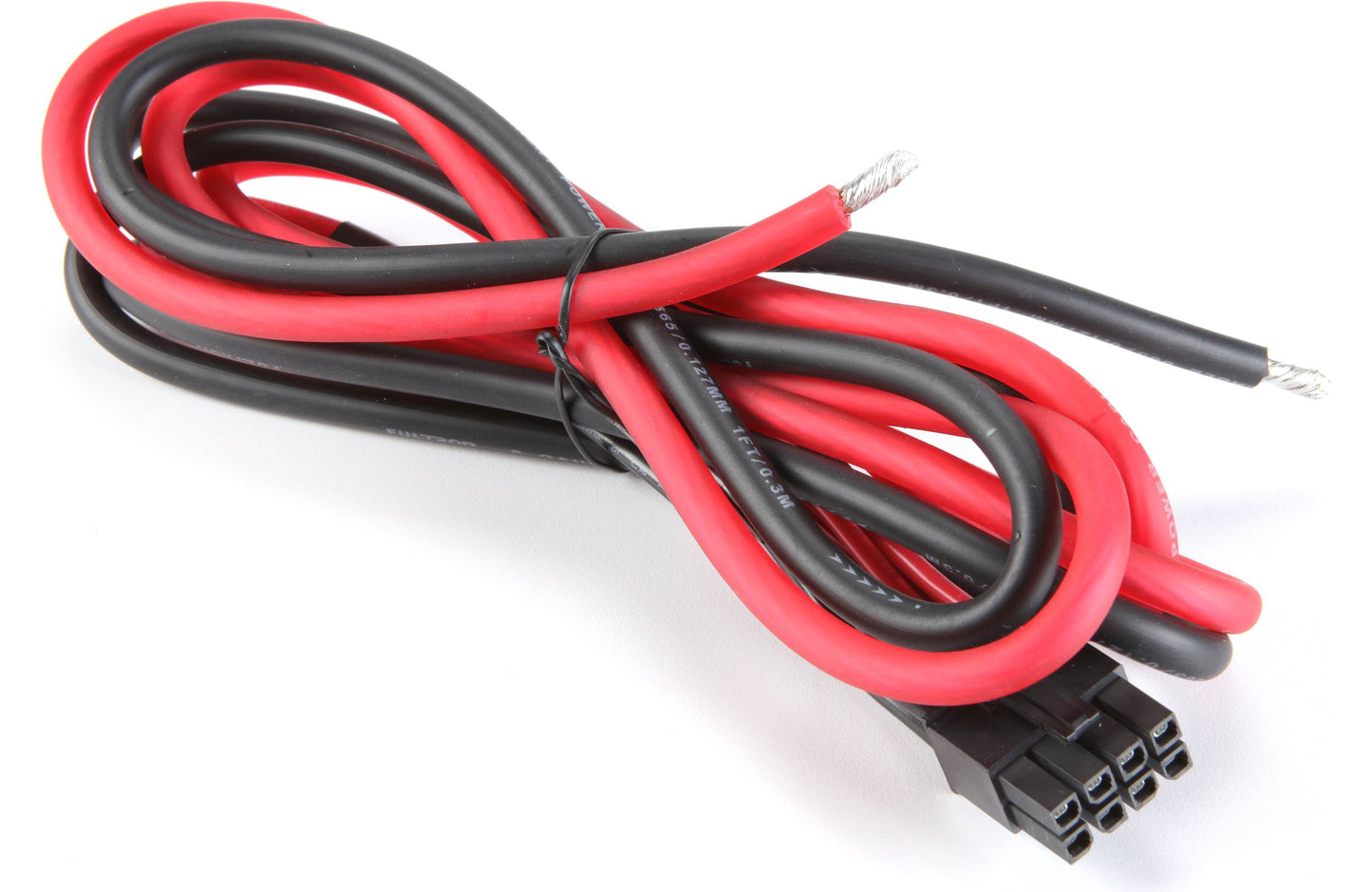

- 64" Power harness

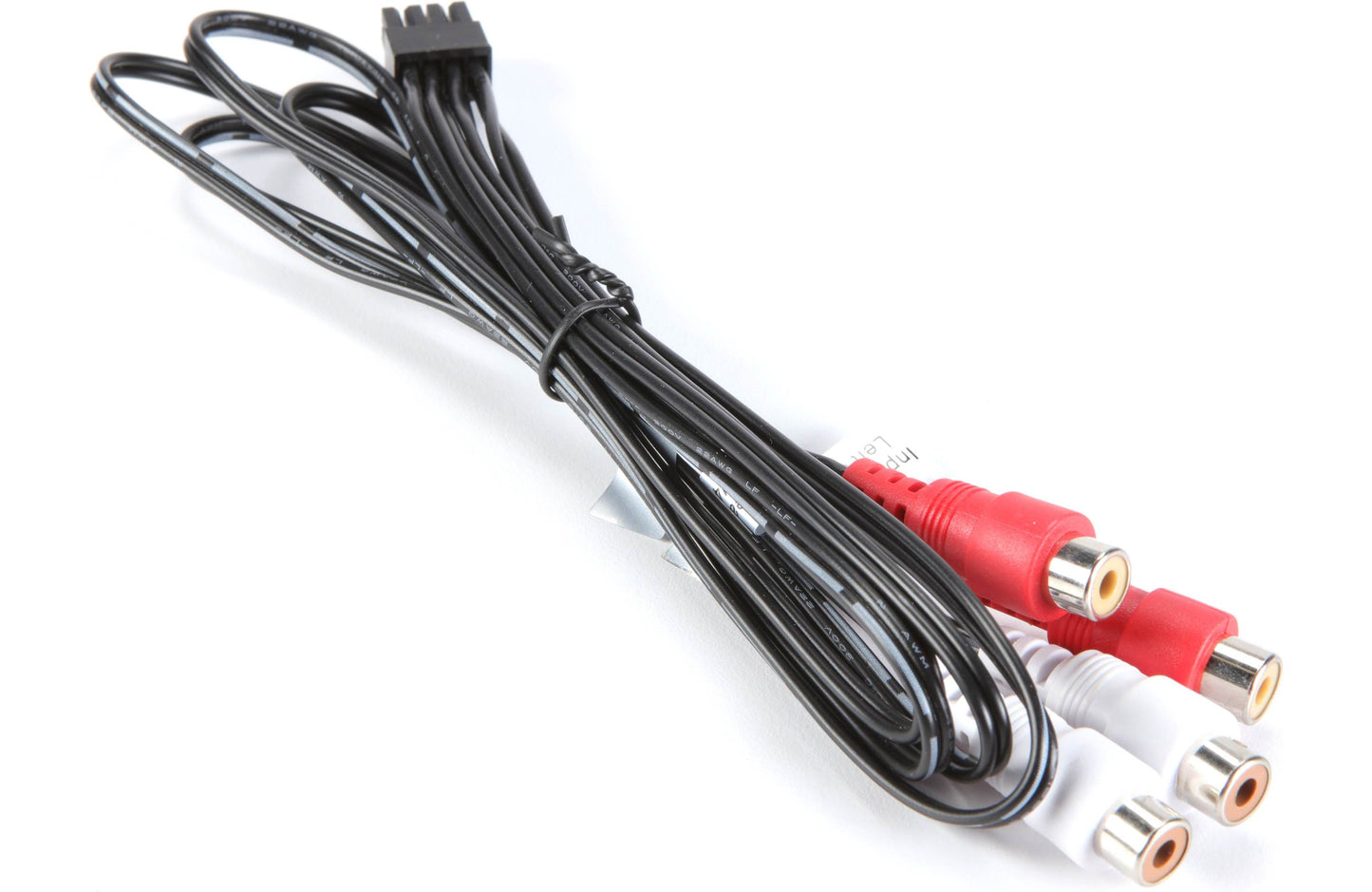

- 18" RCA input harness

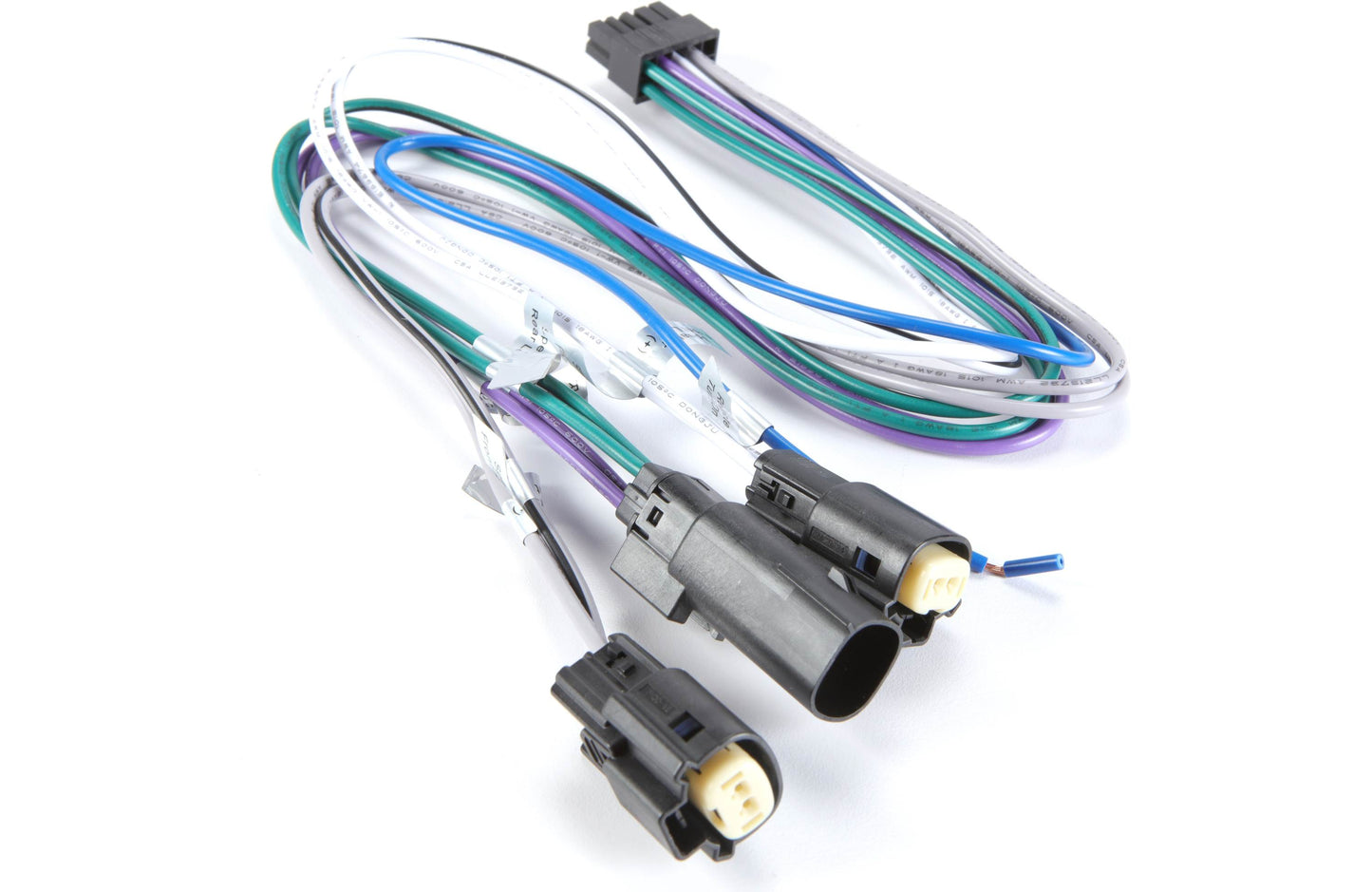

- 18" Speaker input harness
- 18" Speaker output harness

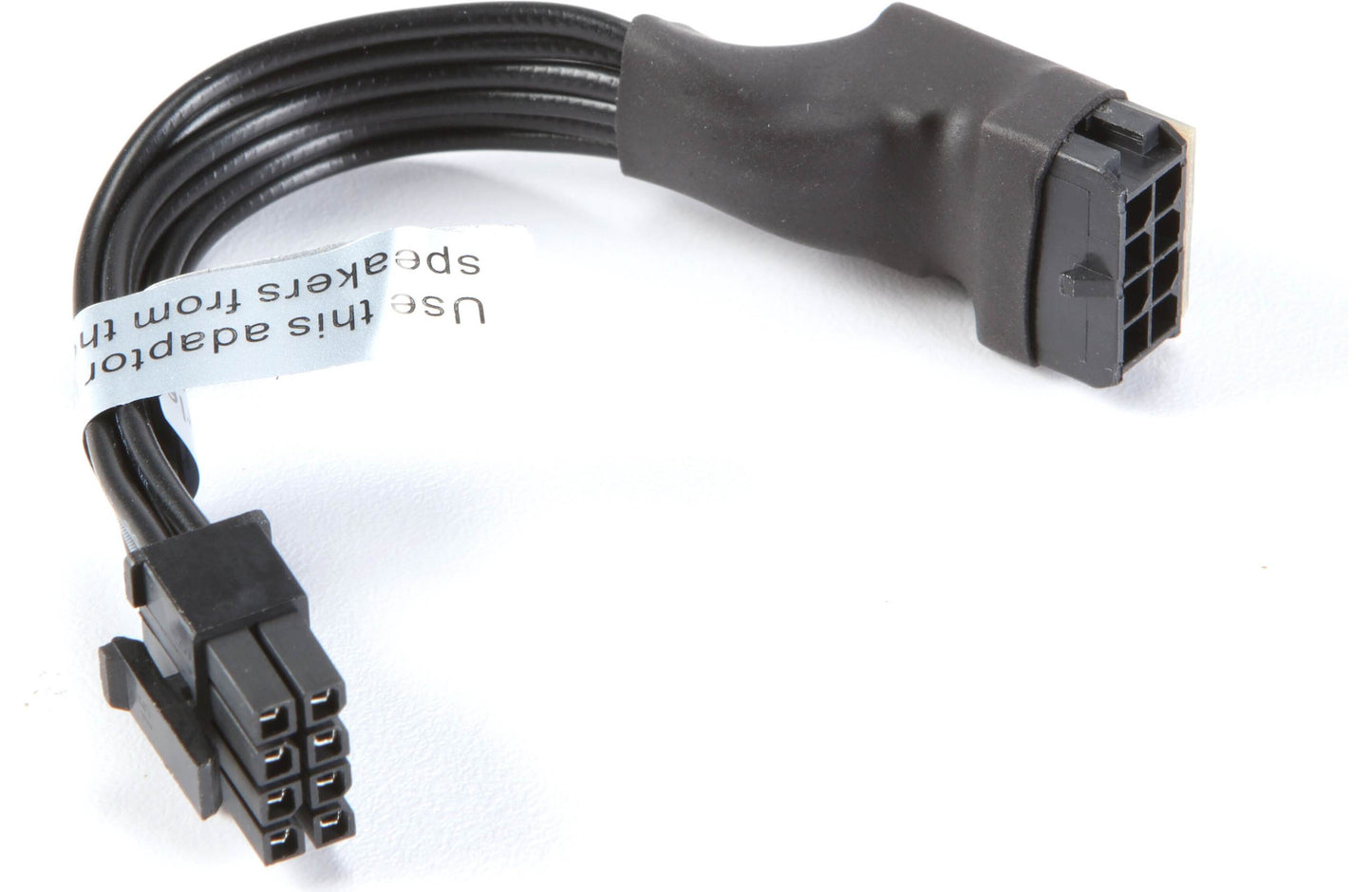

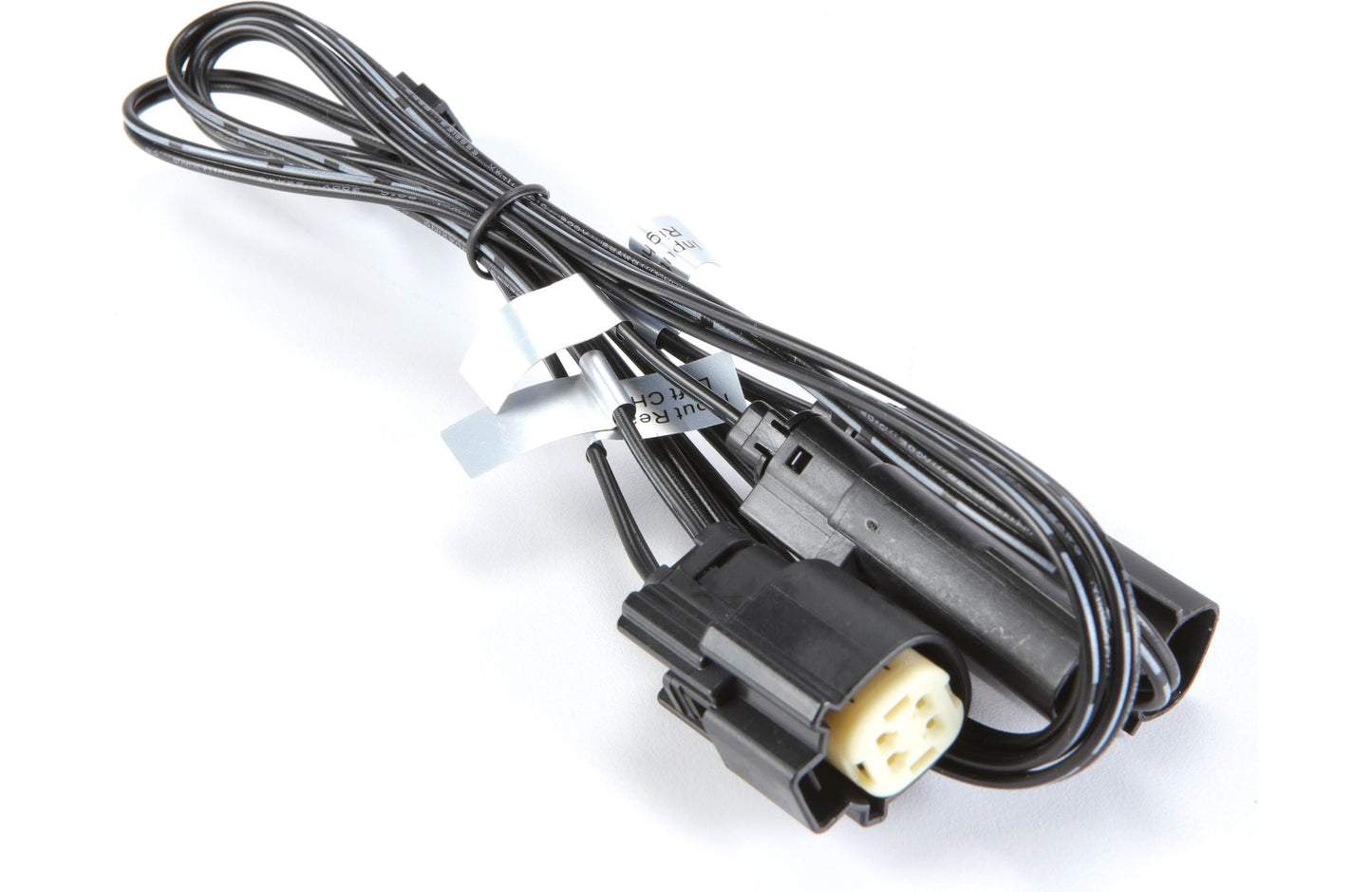

- Harley-Davidson 2-speaker input adapter

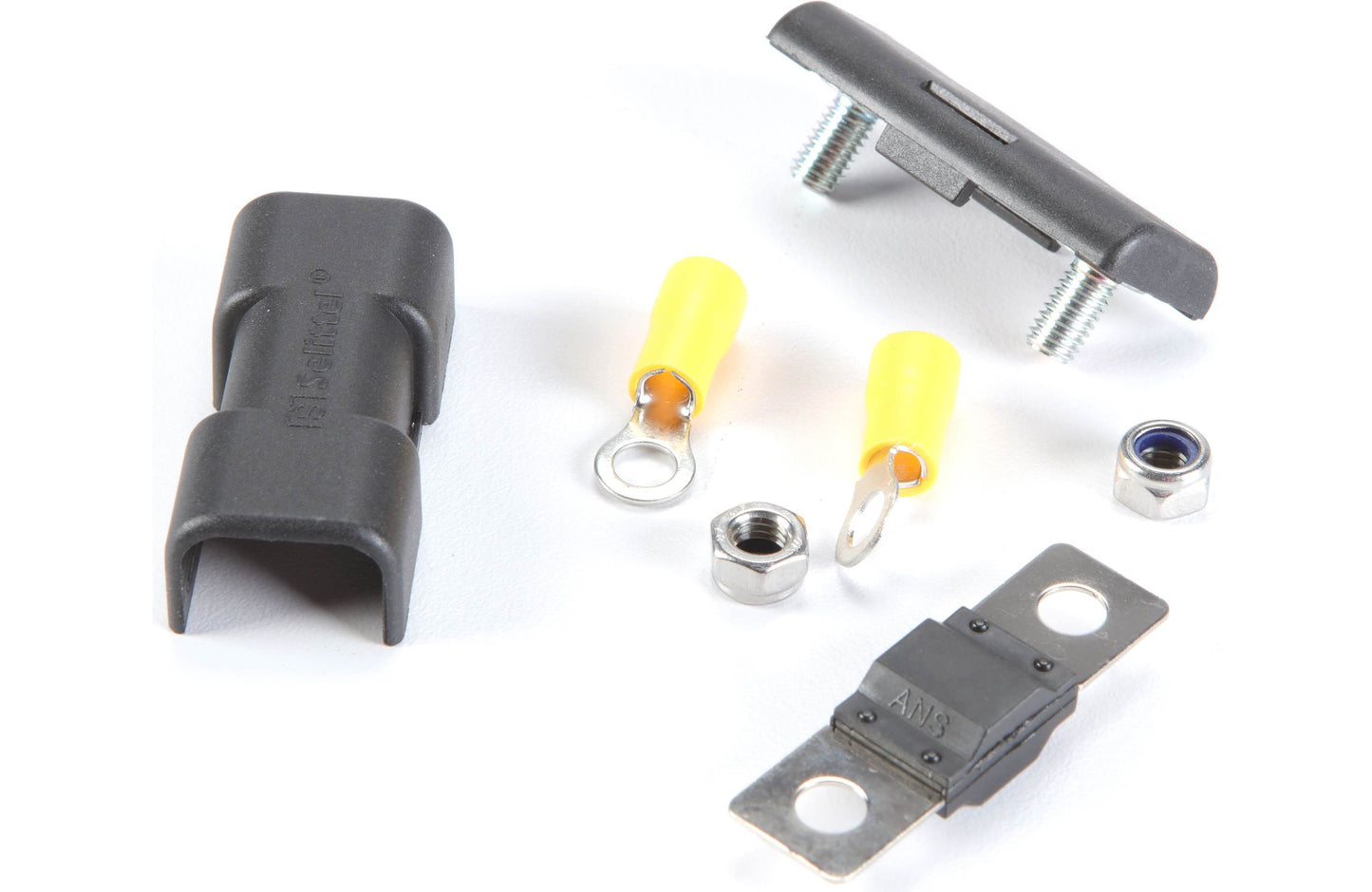

- In-line fuse holder
- One 50-amp fuse
- Two locknuts
- 2 Ring terminals
- 2.5mm Hex key
- 4 Mounting brackets
- Four M5x6mm Machine screws
- Four countersunk M3x4mm Machine screws
- Four 1" Screws
- Four rubber flat washers
- Operation manual
- Wiring information note
