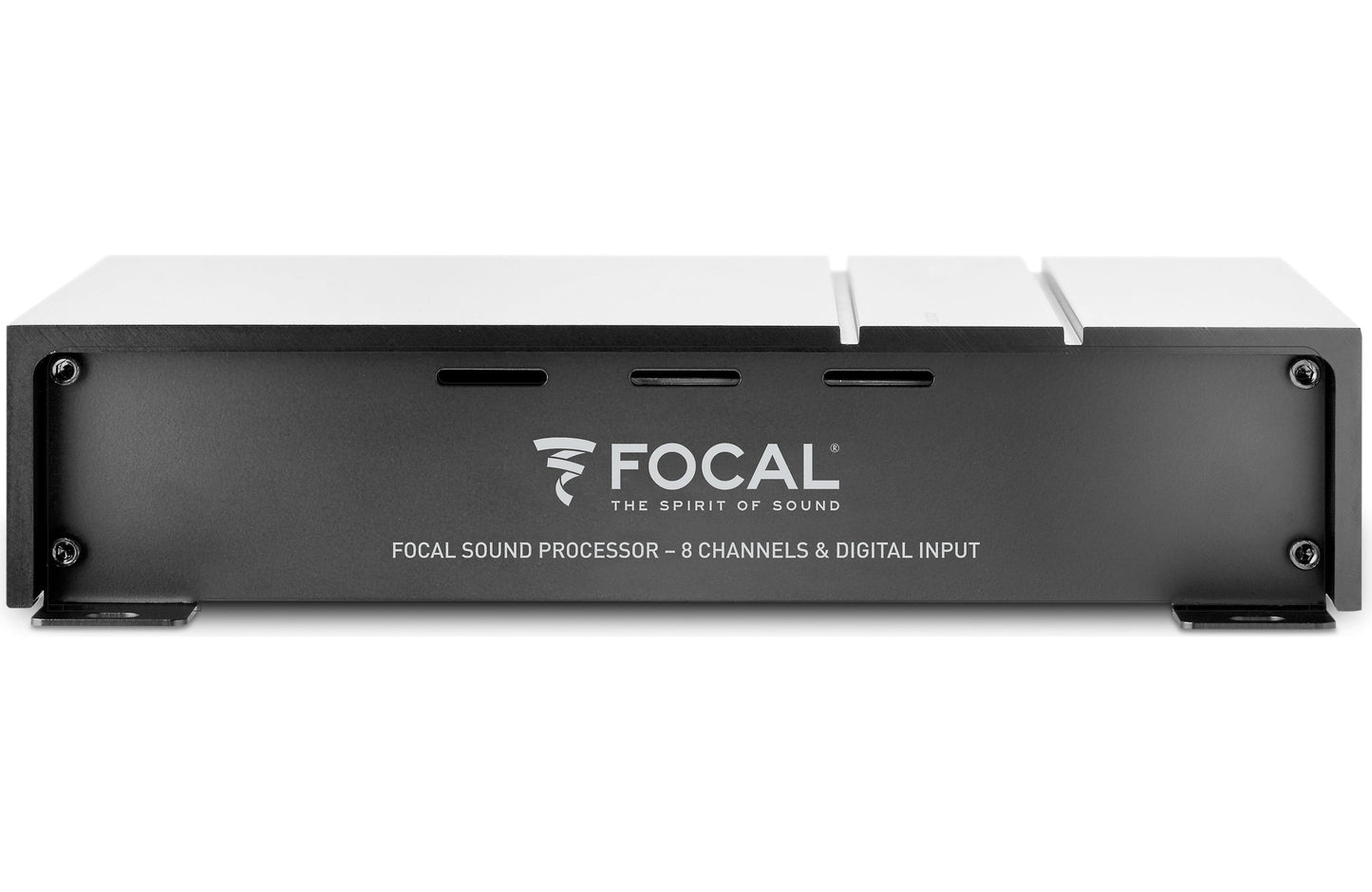

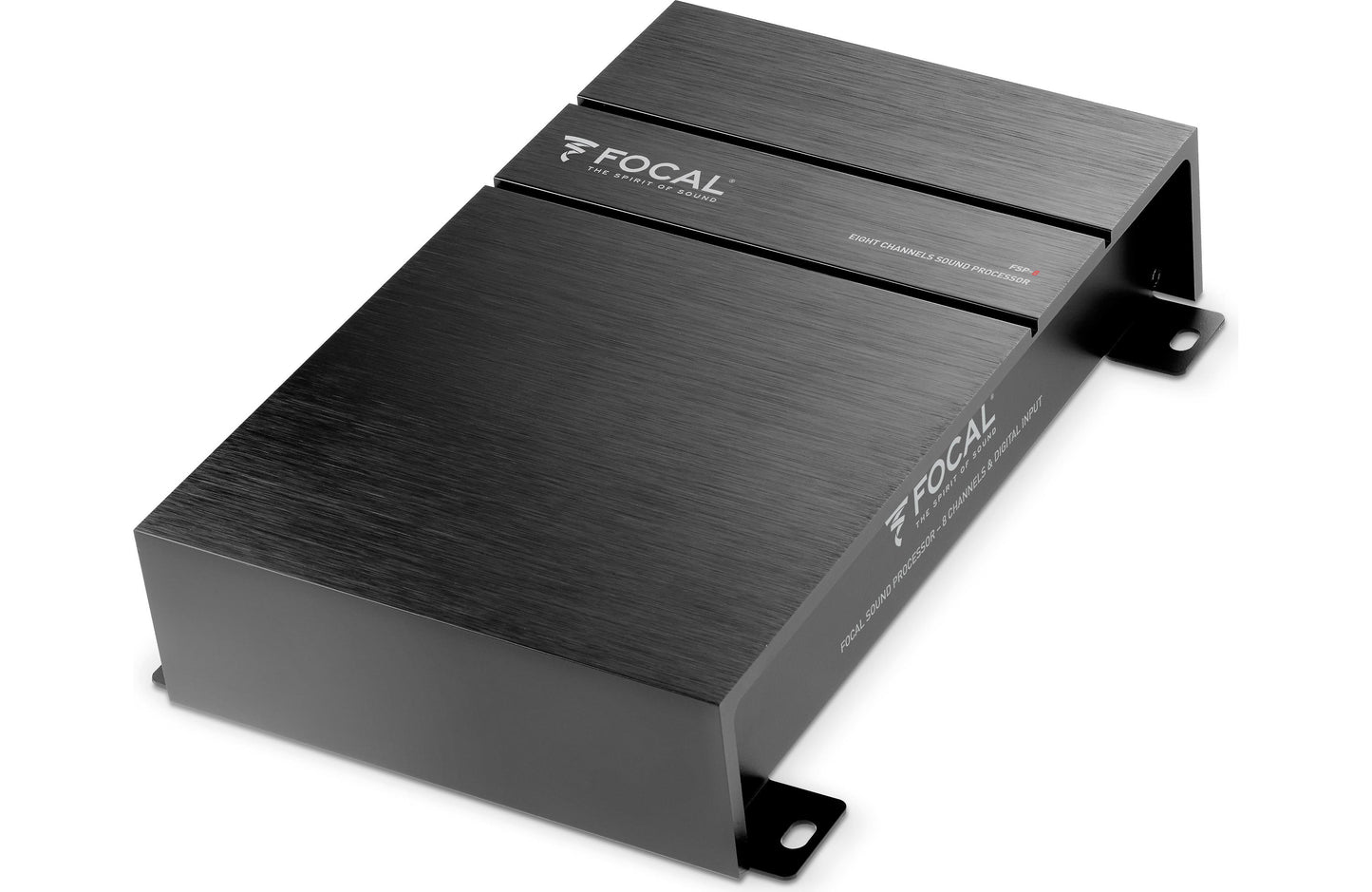

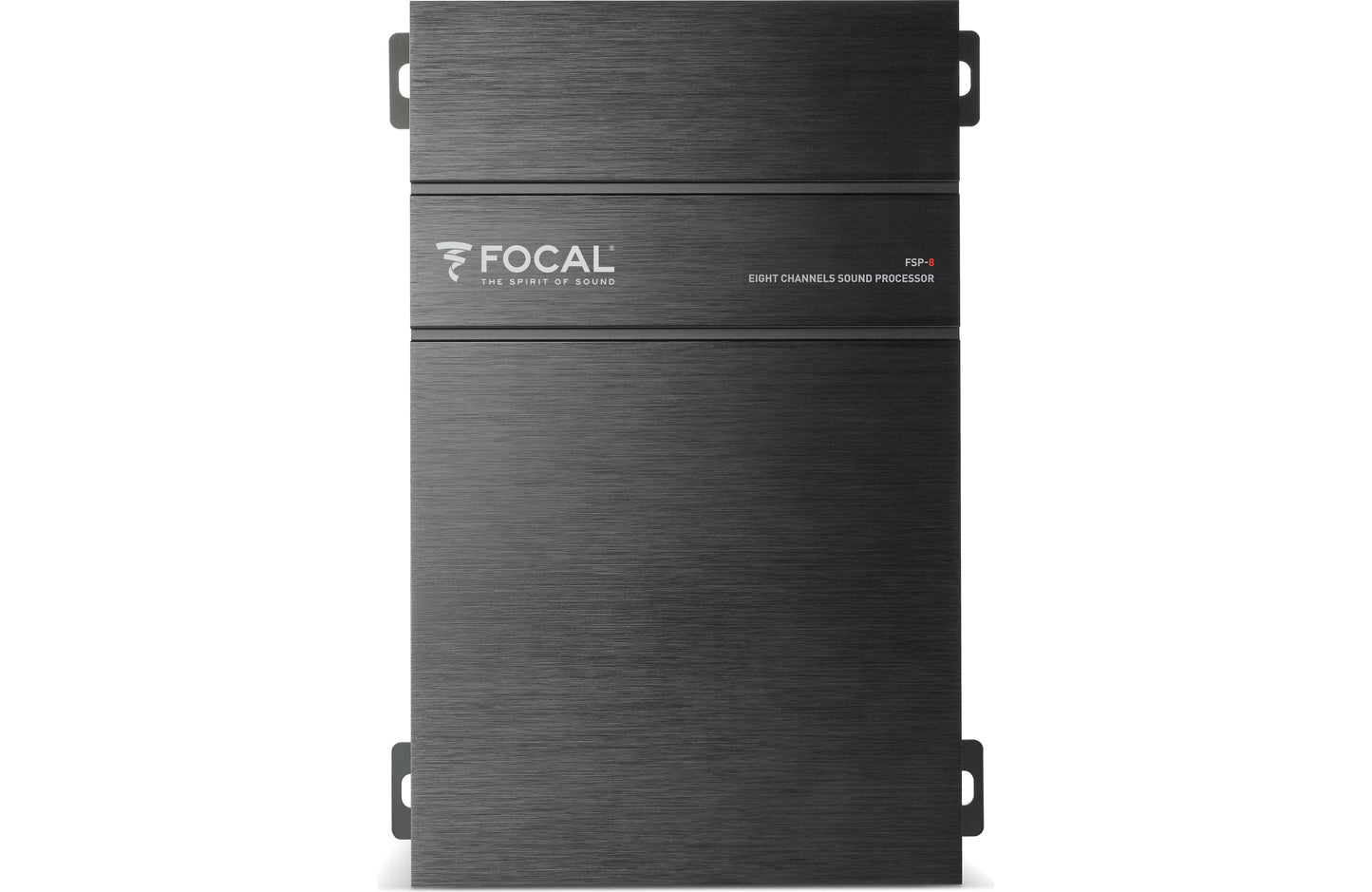

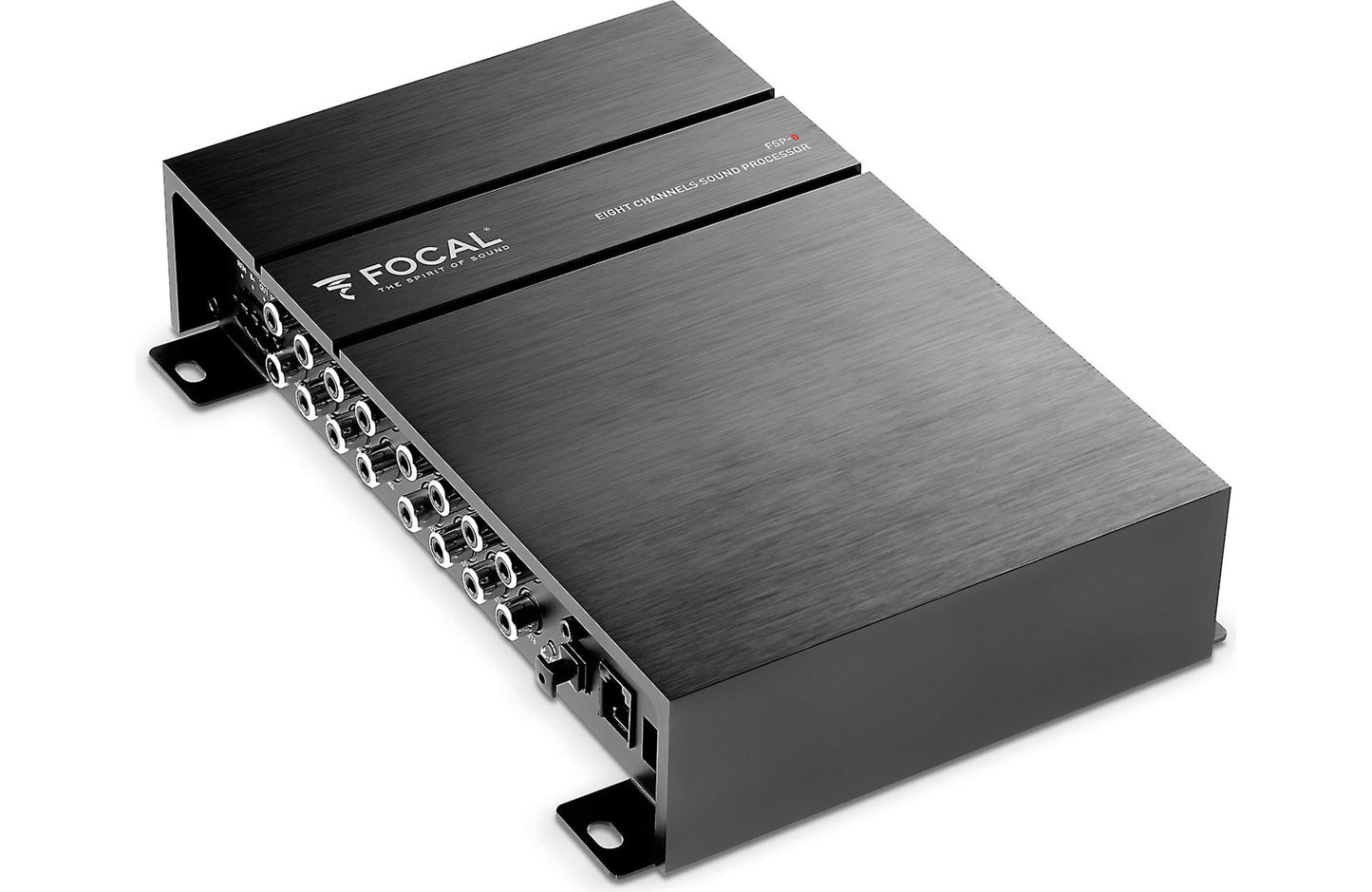

    Focal FSP-8 8-channel digital signal processor

    $1,630.00 USD
    $1,299.00 USD
    In stock!
    Spend $100.00 to FREE SHIPPING

    Product description

    Sculpt the sound to your ideal shape

    There's a lot more to achieving high-fidelity sound than tweaking a bass knob. Focal's FSP-8 digital signal processor gives you the power to tune your system to sound balanced, clear, and accurate. Each channel of the FSP-8 features a 10-band equalizer, extensive crossover settings, time alignment, and more. A wired remote control lets you change settings, and store and recall up to four presets from the comfort of your front seat.

    Works well with most systems

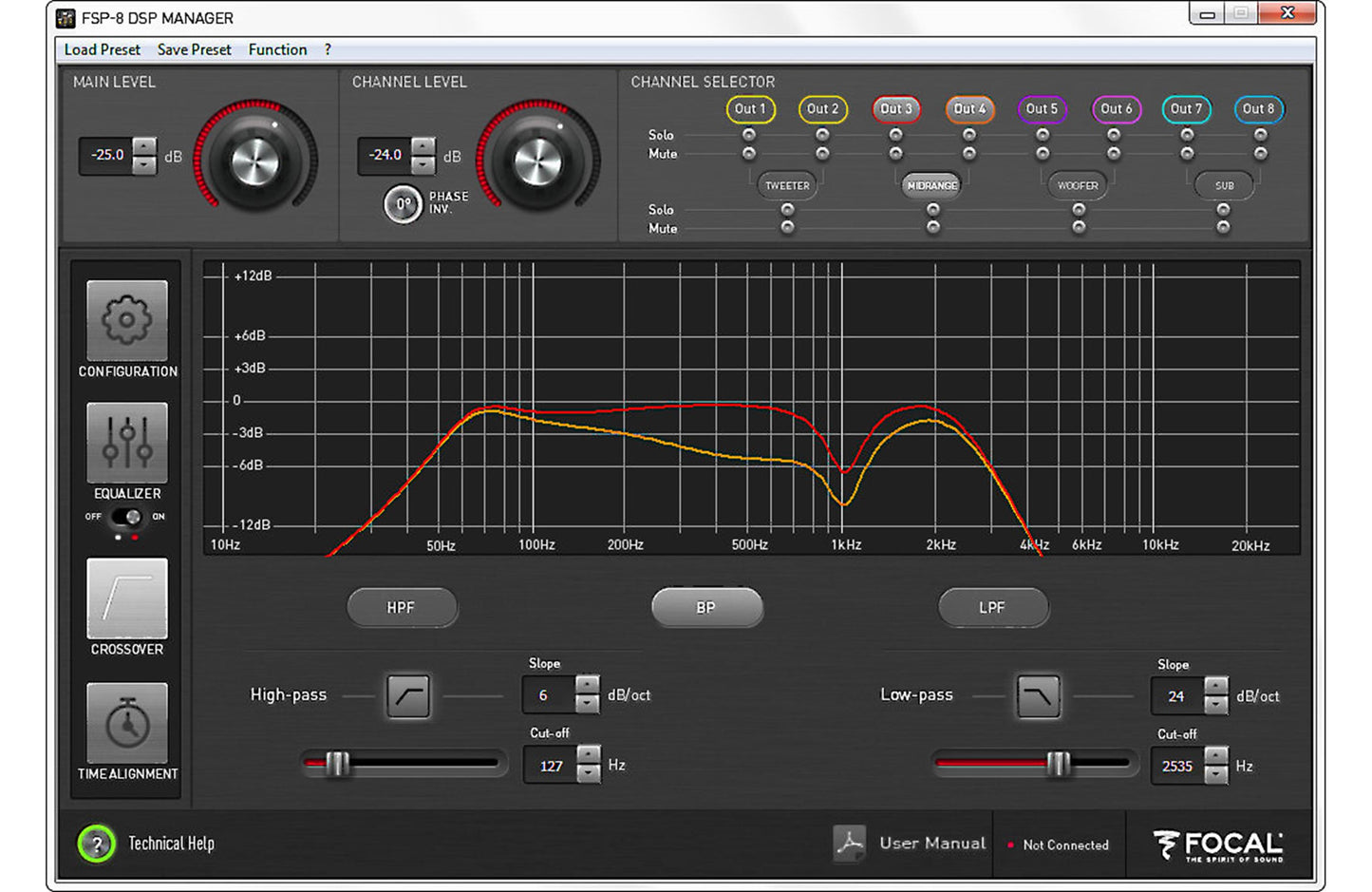

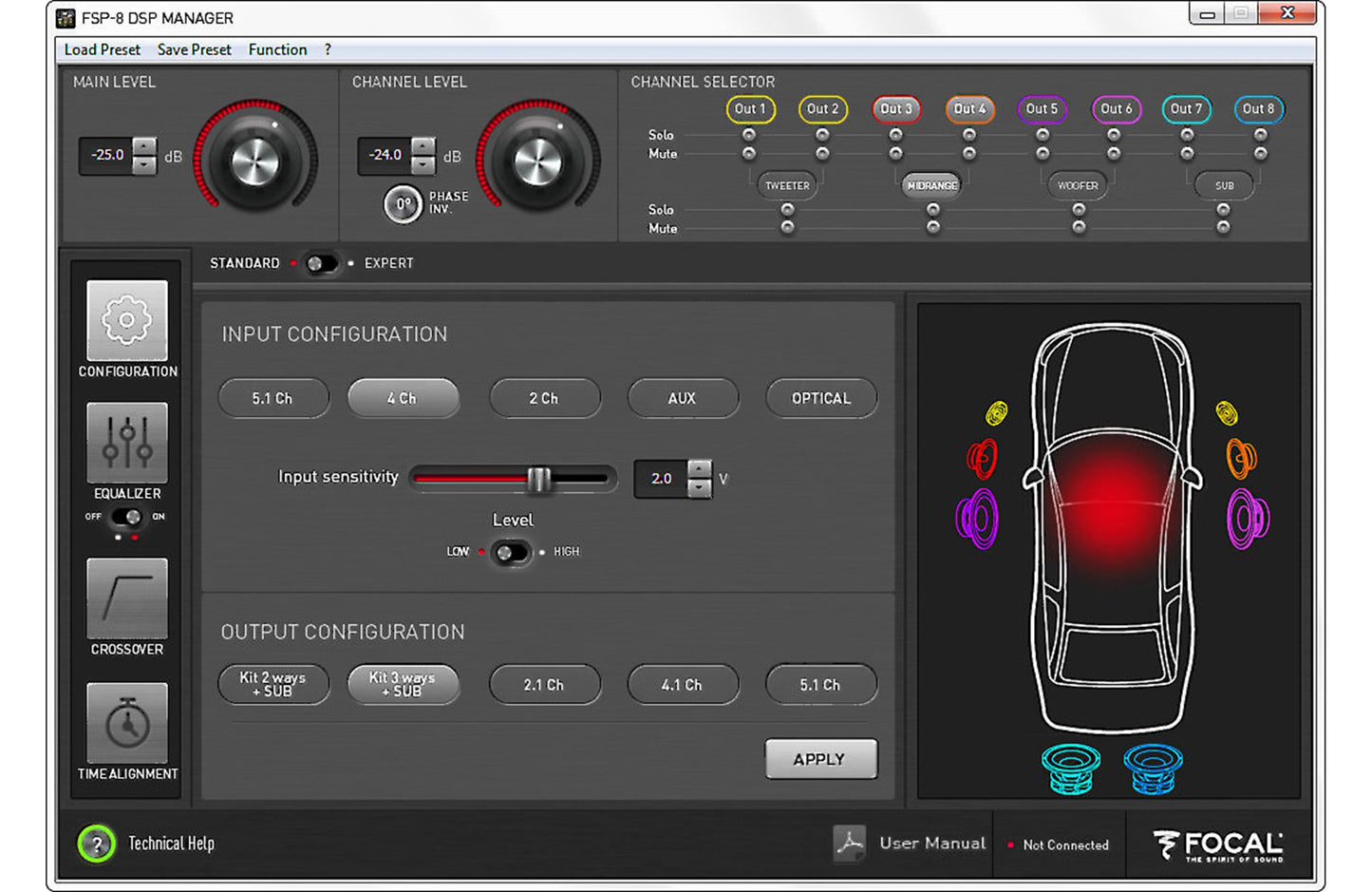

    The FSP-8 features both preamp and speaker-level inputs so it'll work in almost any system — even one using a factory radio. After installation, you download the FSP-8 DSP MANAGER app from Focal to your Windows-run PC. From there, the user interface software lets you access the menus for Configuration, Equalizer, Crossover, and Time alignment.

    Adjustment features

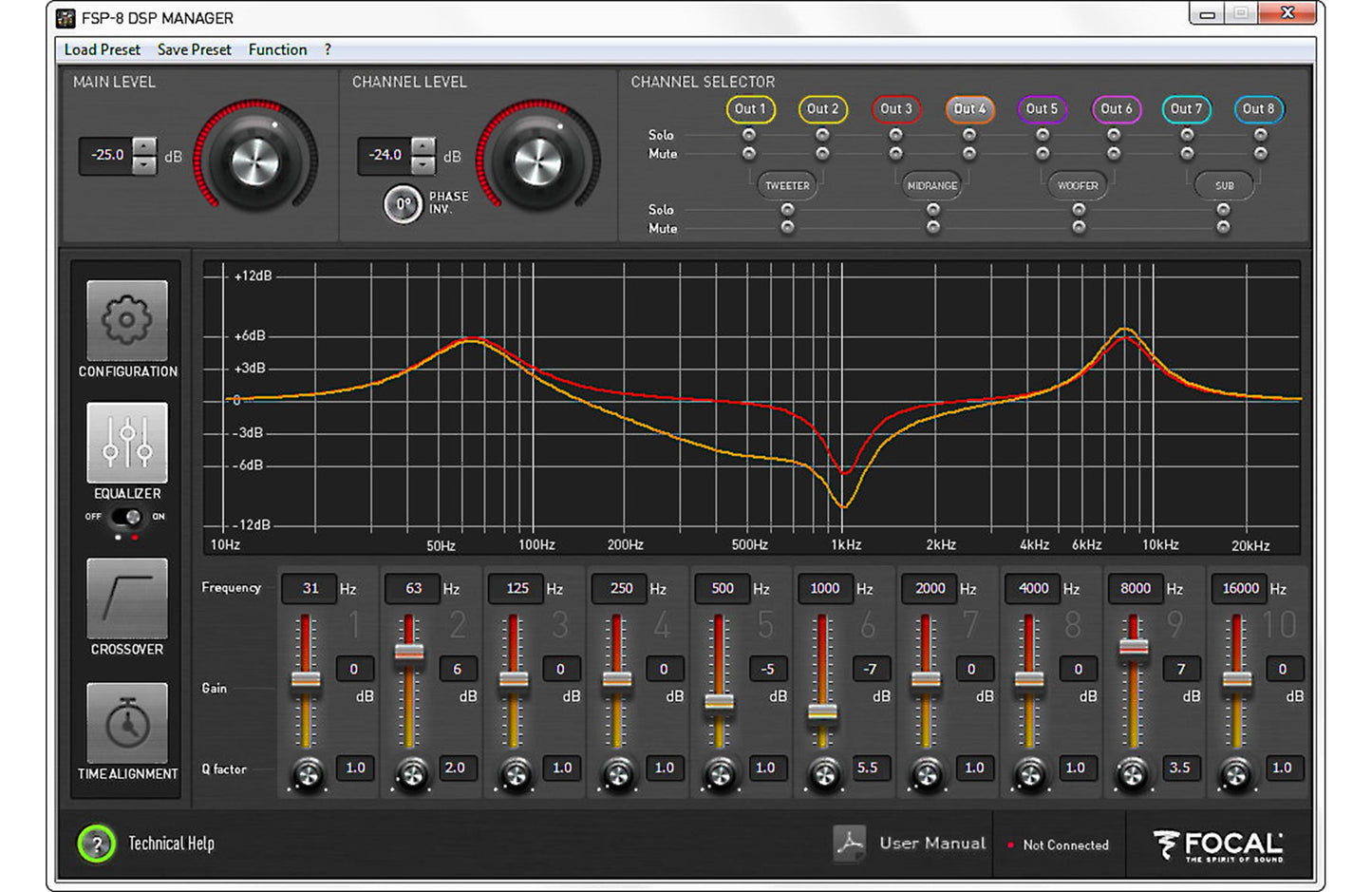

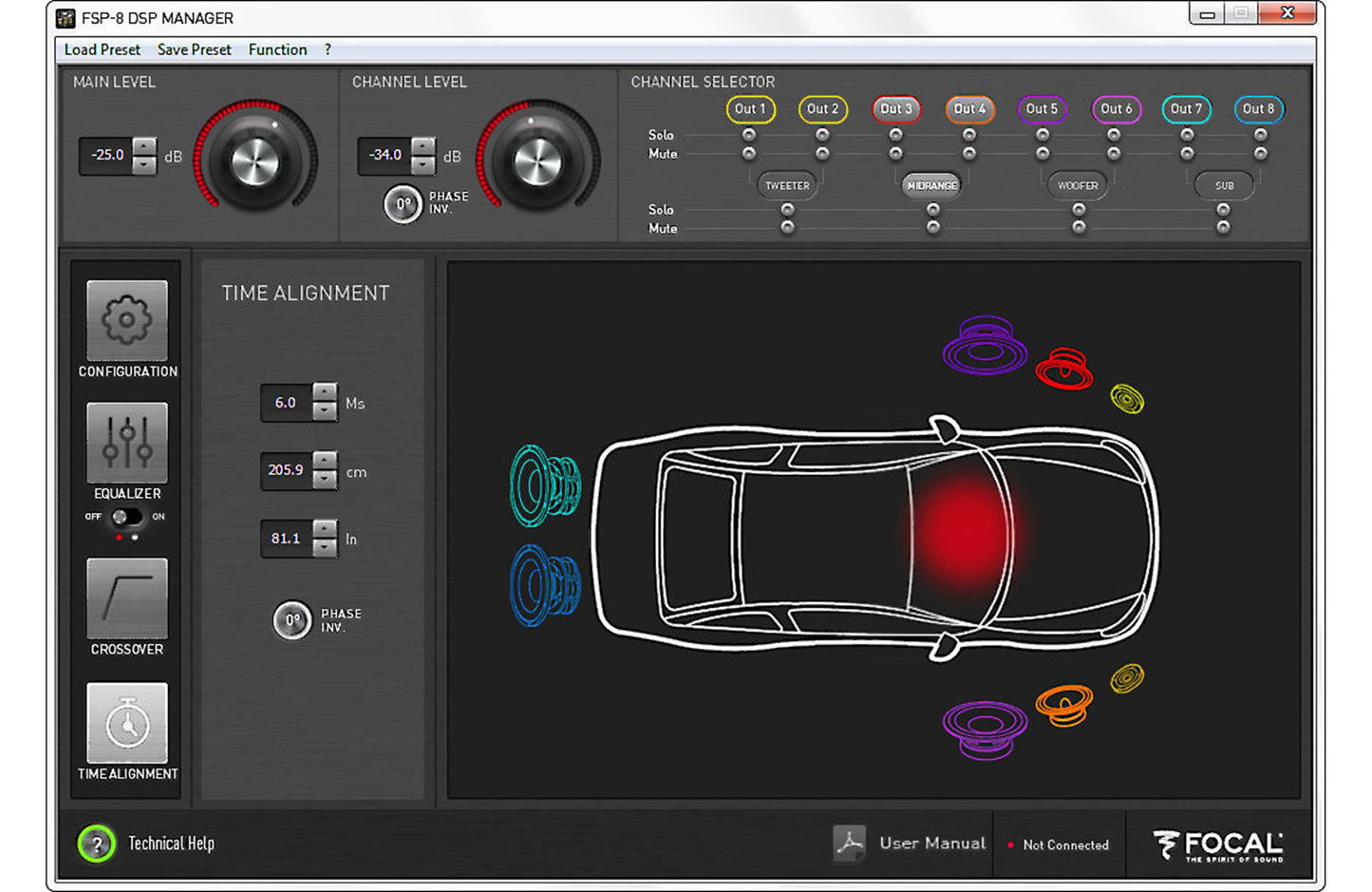

    You can set high-pass, low-pass, and bandpass crossover filters to optimize the signal for any kind of driver you're using — tweeter, midrange, woofer, or subwoofer. 10-band equalization on all 8 channels gives you serious control over the tone coming out every amp and speaker in your system. In order to center the stereo soundstage for the driver, you can adjust time alignment by clicking a stepper button, entering a distance or timing number, or by dragging a speaker icon in the display to the right virtual distance from the listener's position.

    Product highlights:

    • digital signal processor
    • DSP adjustments and settings made via computer (Windows only) and remote control
    • download FSP-8 DSP MANAGER from Focal

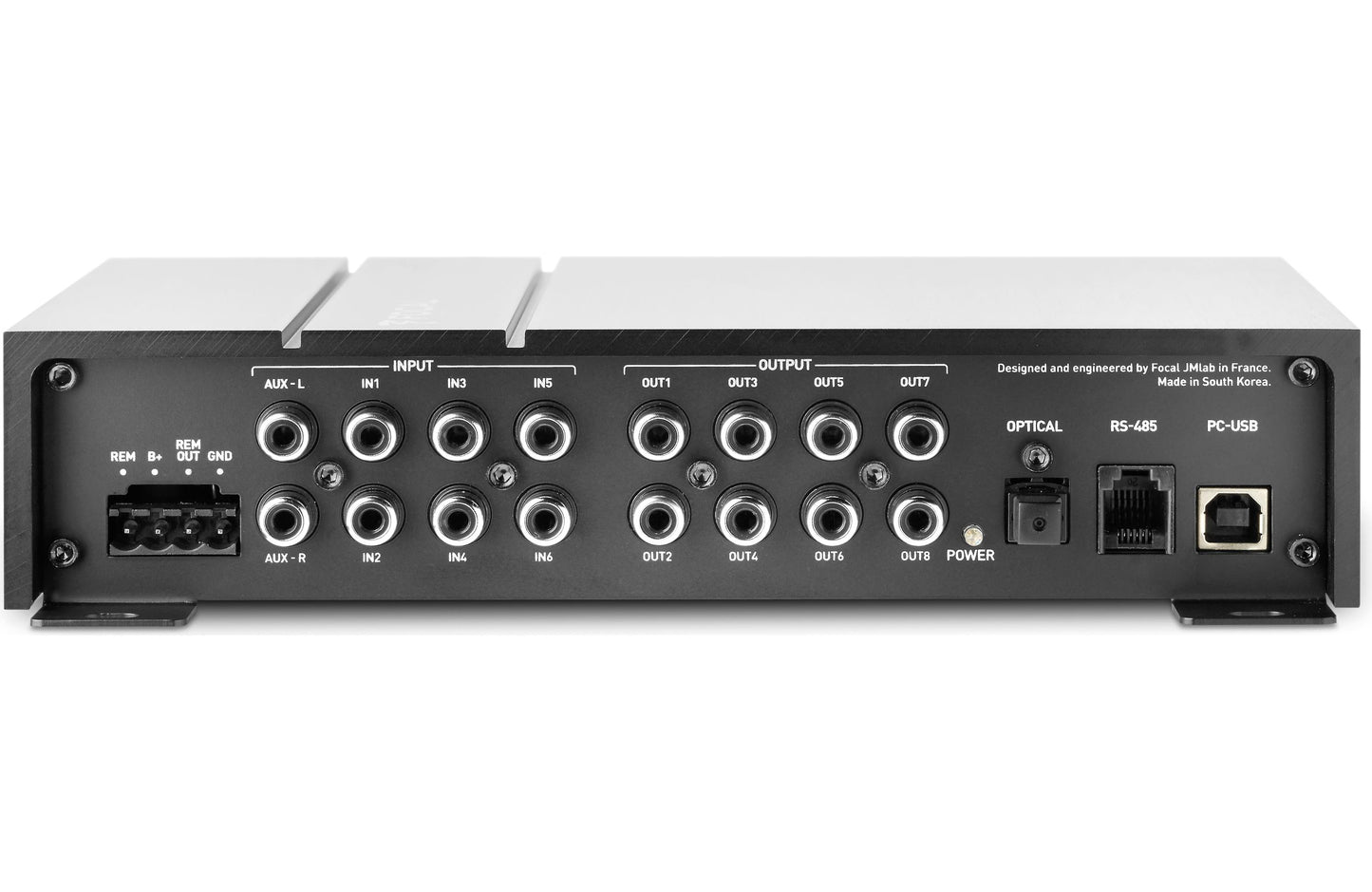

    • inputs: 6 RCA inputs (for preamp or speaker-level signals); 2 RCA aux inputs; SPDIF input (TOSLINK)
      • speaker-level inputs require RCA-to-bare-wire adapters
      • Aux L/R preamp inputs let you add a source
      • optical digital input can handle 24 bit, 192 mHz signal
    • outputs: 8 RCA preamp outputs (3.4 volts RMS)
    Adjustment Details:
    • adjustable time delay (0-22 msec in 0.1 msec increments)
    • 10-band graphic EQ
    • adjustable high-, low-, and band-pass filters (16-20,000 Hz)
    • phase invertor
    • store and recall up to 4 presets
    Other Features:

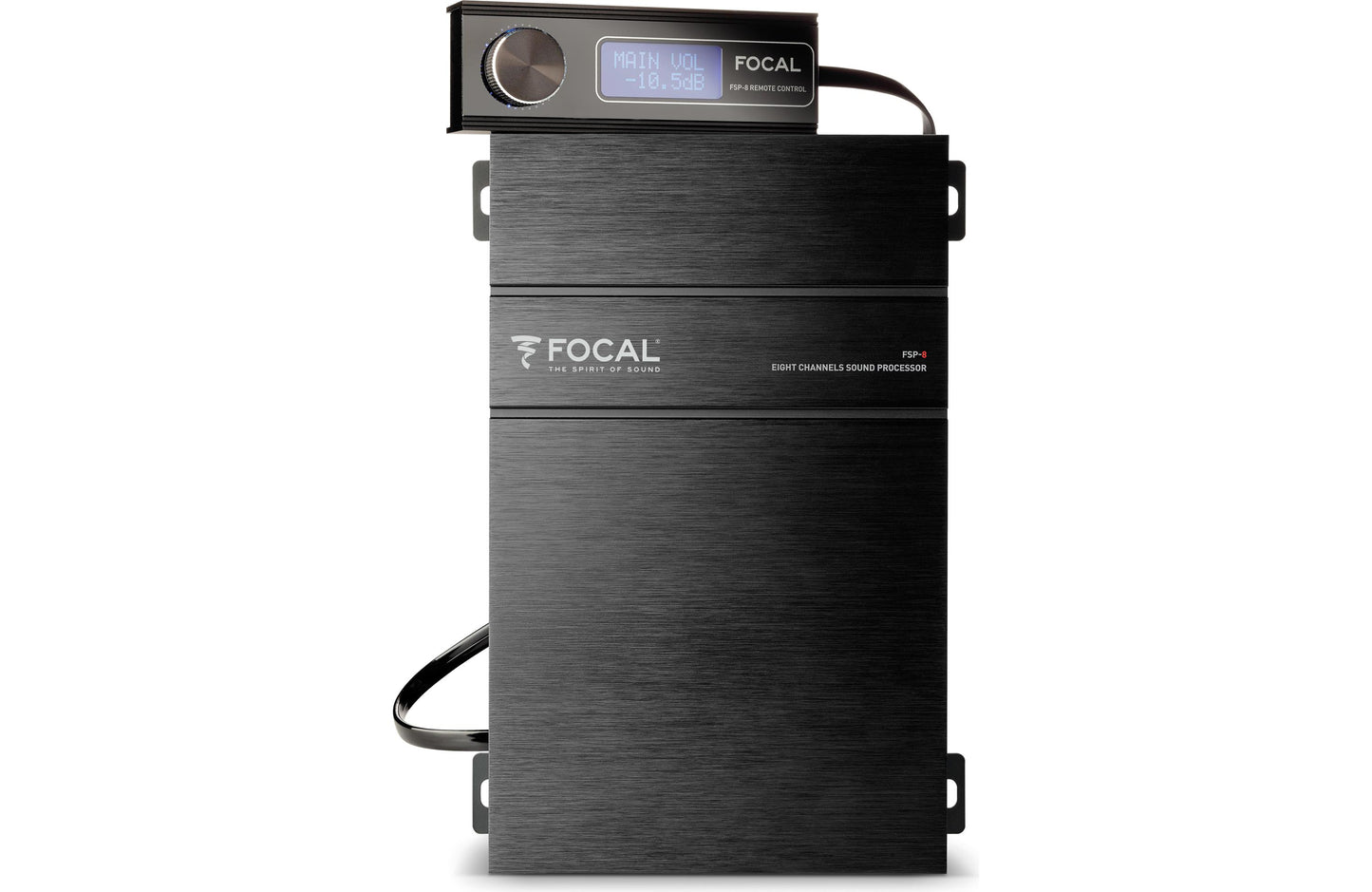

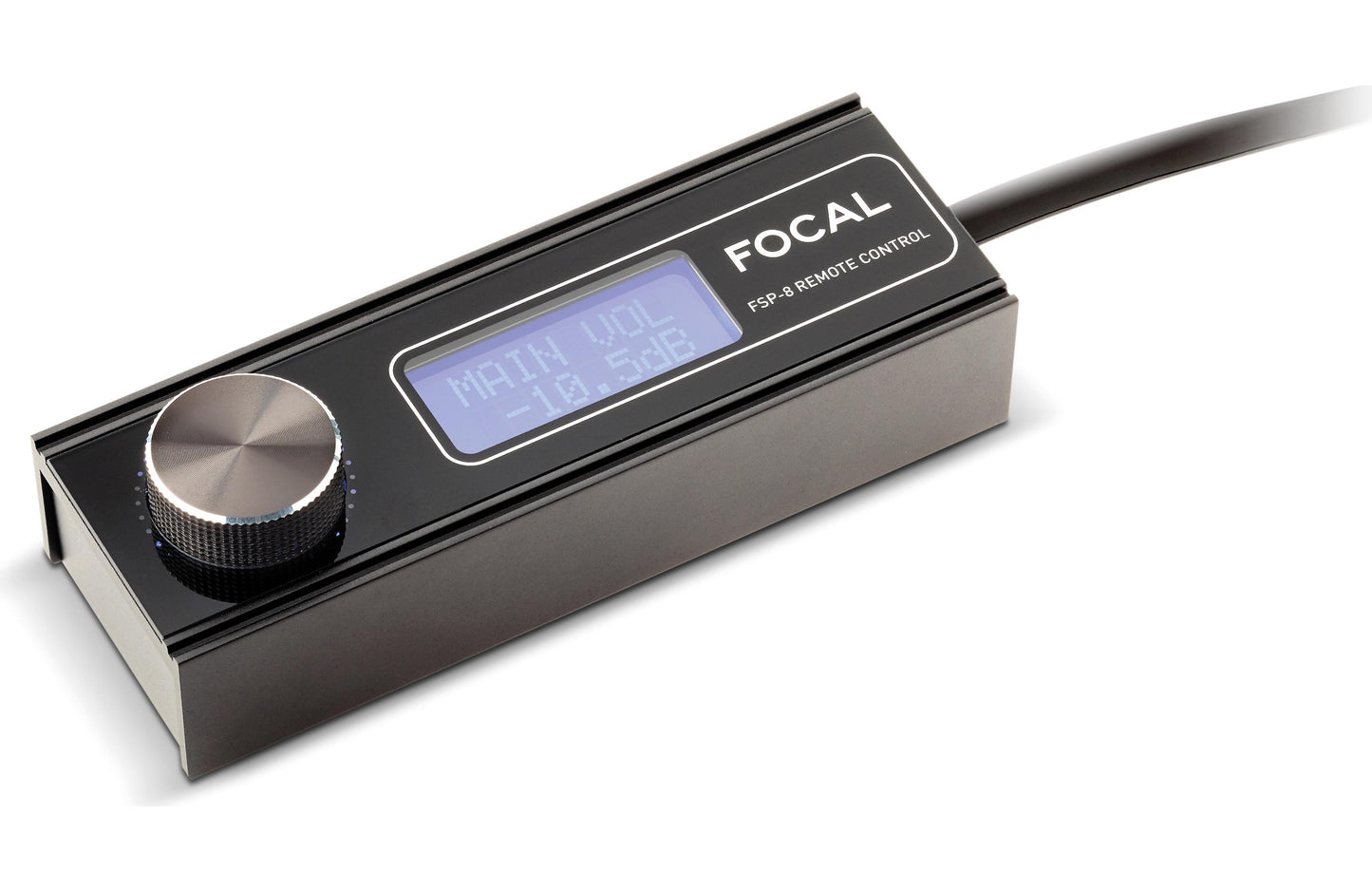

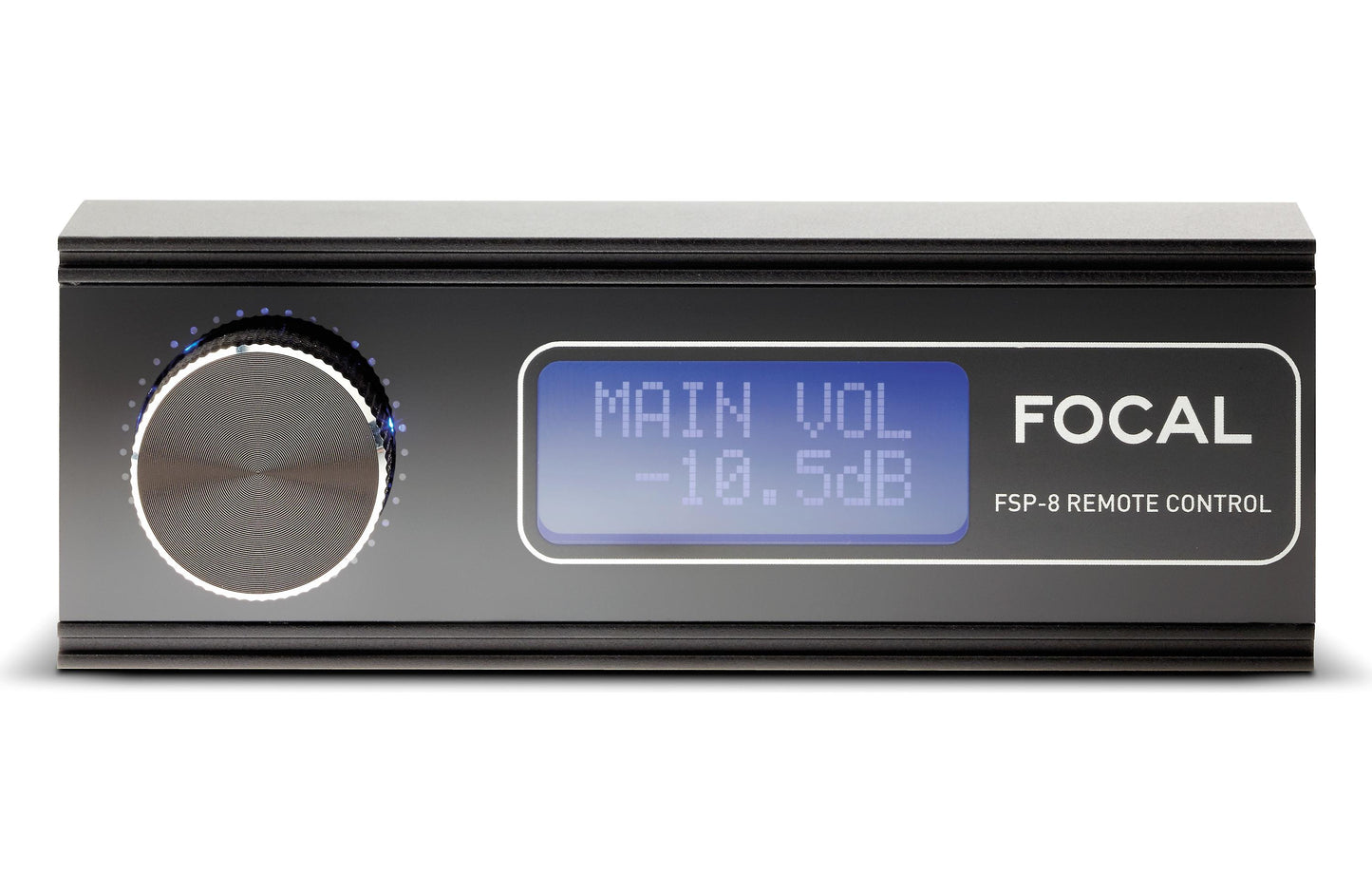

    • includes wired remote control
    • includes USB cable for connecting to a PC
    • wiring, fuse, and hardware not included
      • 20-gauge (minimum) power and ground wires and a 3-amp fuse recommended
    • dimensions: 8-5/8"W x 1-15/16"H x 6-3/16"D (with brackets)
    • warranty: 1 year
    • MFR # FSP-8

    What's in the box:

    • FSP-8 Signal processor
    • FSP-8 Wired remote control
    • 16.5' USB cable (Type-A on one end / Type-B on other
    • 2.0)

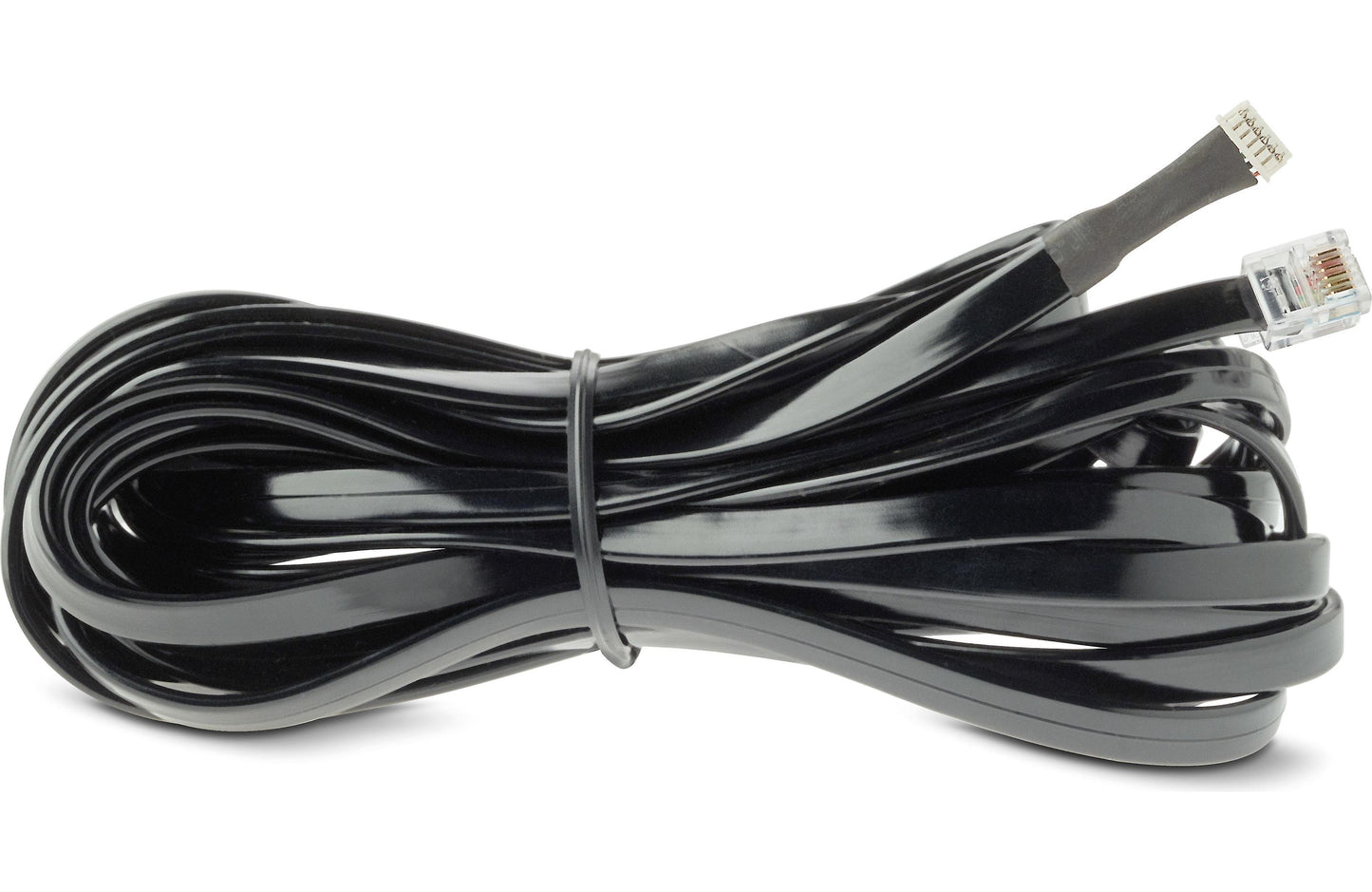

    • 16.5' RS-485 cable (RJ-24 connectors both ends)
    • Four 3/4" Phillips-head screws
    • 3.5" Strip hook-and-loop fastener
    • User manual
